BC/BD-2X880EC1-B01 Photo

BC/BD-2X880EC1-B01

Karyer Β· BC/BD (Vertical/Horizontal)

Request information
Capacity
β€”
Airflow
284844.0 mΒ³/h
Sound
β€”
Power
β€”
Weight
2732.00 kg

Overview

Dimensions
11750 Γ— 1250 Γ— 1240 mm
Connections
β€”
Materials
Copper tubes, Aluminium fins

Fan

Model
FN080-SDQ.6N.V7
Diameter
β€”
Count
16
RPM
β€”
Voltage
400 V
Phase
β€”
Type
β€”

Dimensions

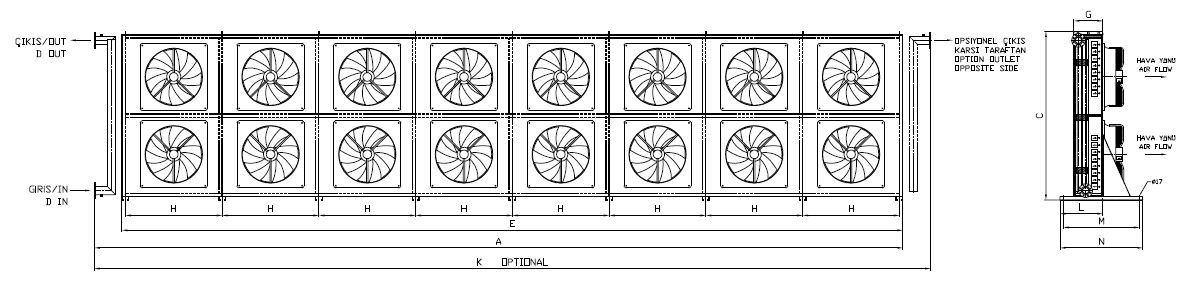

BC/BD-2X880EC1-B01 dimension drawing

Dimension drawing β€” all measurements in mm

Dimension Value
Length (overall) 11750 mm
Width / Depth 1250 mm
Height (overall) 1240 mm
Weight 2732.0 kg
