Overview

Dimensions

3100 × 2300 × 2453 mm

Connections

—

Number of fans

2

Fan

Model

—

Diameter

—

Count

2

RPM

—

Voltage

400 V

Phase

—

Type

—

Dimensions

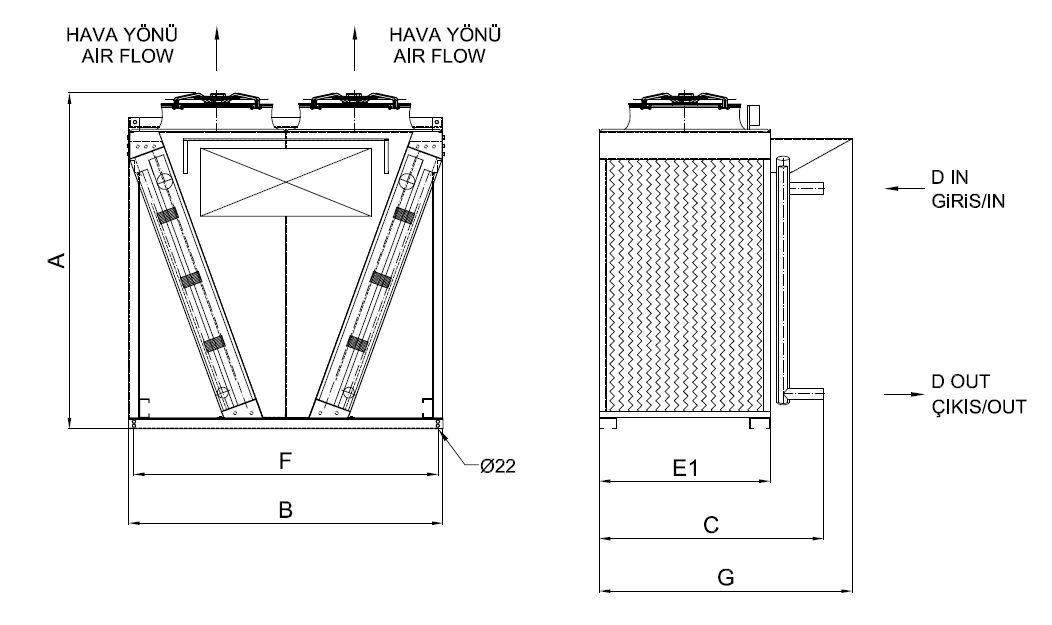

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	2453 mm
B	Sub-dimension B	2300 mm
C	Sub-dimension C	2850 mm
F	Sub-dimension F	2230 mm
G	Sub-dimension G	3100 mm
	Length (overall)	3100 mm
	Width / Depth	2300 mm
	Height (overall)	2453 mm
Wt	Weight	985.0 kg
