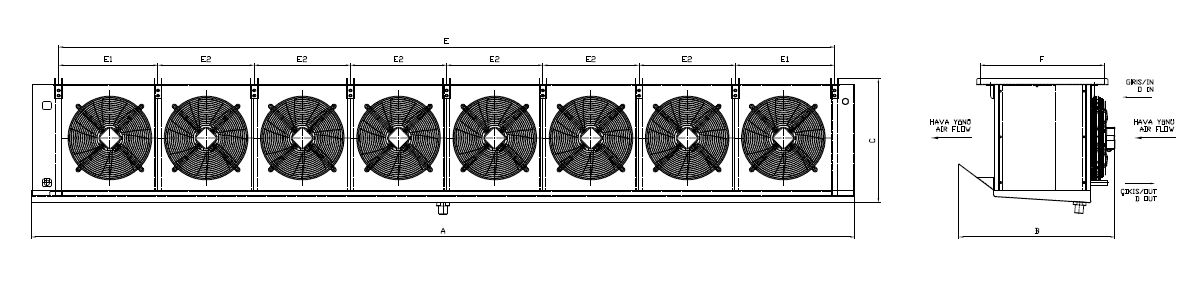

Dimension drawing — all measurements in mm
| Ref | Dimension | Value |
|---|---|---|
| A | Sub-dimension A | 4457 mm |
| B | Sub-dimension B | 730 mm |
| C | Sub-dimension C | 530 mm |
| E | Sub-dimension E | 4035 mm |
| F | Sub-dimension F | 560 mm |
| Length (overall) | 4457 mm | |
| Width / Depth | 730 mm | |
| Height (overall) | 530 mm | |
| Wt | Weight | 210.0 kg |
