صورة

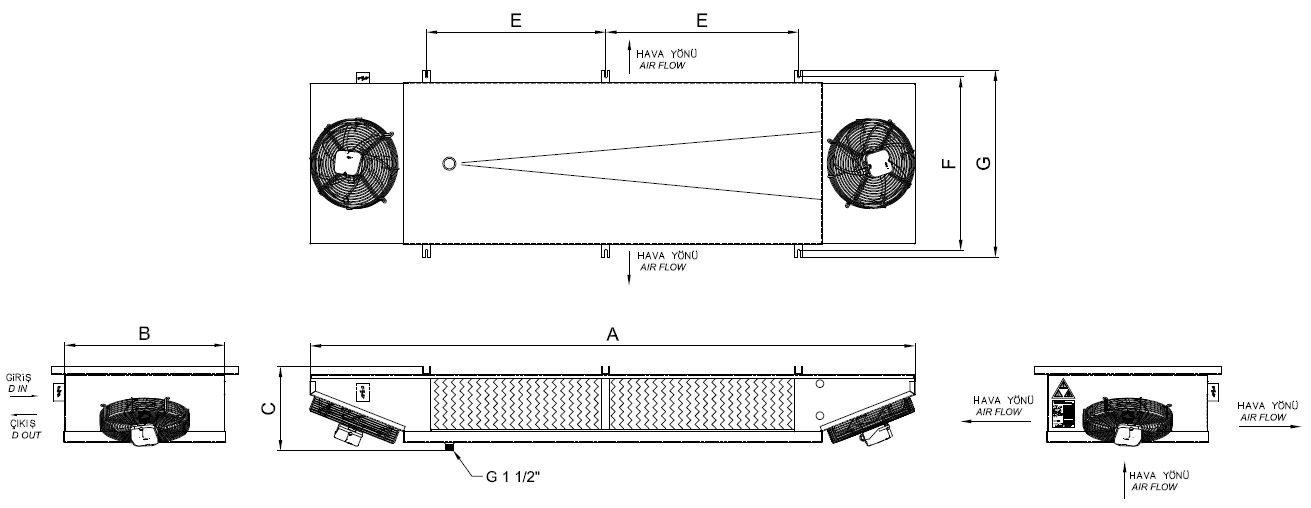

Dimension drawing — all measurements in mm
| Ref | البعد | القيمة |
|---|---|---|
| A | Sub-dimension A | 3900 mm |
| B | Sub-dimension B | 600 mm |
| C | Sub-dimension C | 366 mm |
| E | Sub-dimension E | 1515 mm |
| F | Sub-dimension F | 650 mm |
| G | Sub-dimension G | 700 mm |
| Length (overall) | 3900 mm | |
| Width / Depth | 600 mm | |
| Height (overall) | 366 mm | |
| Wt | الوزن | 80,0 kg |
