صورة

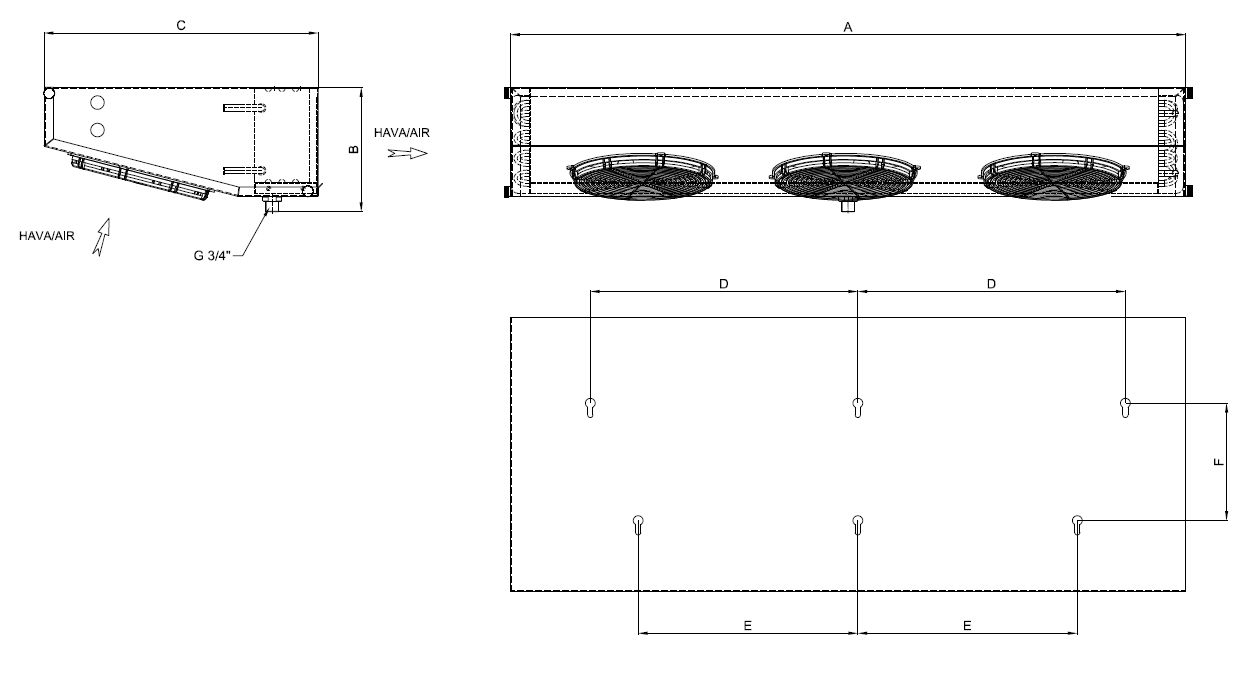

Dimension drawing — all measurements in mm
| Ref | البعد | القيمة |
|---|---|---|
| A | Sub-dimension A | 1205 mm |
| B | Sub-dimension B | 215 mm |
| C | Sub-dimension C | 465 mm |
| D | Sub-dimension D | 441 mm |
| E | Sub-dimension E | 365 mm |
| F | Sub-dimension F | 187 mm |
| Length (overall) | 1205 mm | |
| Width / Depth | 465 mm | |
| Height (overall) | 215 mm | |
| Wt | الوزن | 12,0 kg |
